our products
DESICCANT BREATHERS

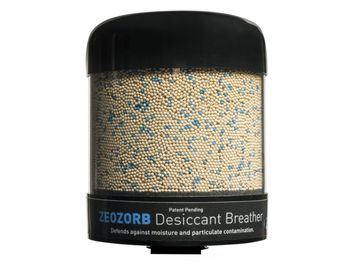

ZEOZORB® Desiccant Breather Model Rugged
Weight: 3.5 lbs
Dimensions: 5.11 x 5.11 x6.125 in
Amount of ZEOLITE(g): 785 g
Amount of ZEOLITE(lbs): 1.73 Ibs
Adsorption Capacity @ 20%(g): 157 g
Adsorption Capacity @ 20 (oz): 5.5 oz
Net weight of Unit (g): 1294 g
Net Weight of Unit (Ibs): 2.85 Ibs
Filtration Area: 8.24 in² / 54.2 cm²
Direction of Flow: Bidirectional
Operating Temperature Range:-40 °F to 248 °F / -40 °C to 120 °C
ZEOZORB® Desiccant Breather Model ZZ-175
Weight: 2.5 Ibs
Dimensions: 4 × 4 × 8.7 in
Amount of ZEOLITE (g): 755 g
Amount of ZEOLITE (Ibs): 1.66 Ibs
Adsorption Capacity @ 20% (g): 151 g
Adsorption Capacity @ 20% (oz): 5.3 oz
Net Weight of Unit (g): 980 g
Net Weight of Unit (Ibs): 2.2 Ibs
Filtration area: 8.4 in² / 54.2 cm²
Direction of Flow: Bidirectional
Operating Temperature Range:-40 °F to 248 °F / -40 °C to 120 °C
ZEOZORB® Desiccant Breather Model ZZ-125
Weight: 1.83 Ibs
Dimensions: 4 × 4 × 6.7 in
Amount of ZEOLITE (g): 470 g
Amount of ZEOLITE (Ibs): 1.03 Ibs
Adsorption Capacity @ 20% (g): 94 g
Adsorption Capacity @ 20% (oz): 3.3 oz
Net Weight of Unit (g): 700 g
Net Weight of Unit (Ibs): 1.5 Ibs
Filtration area: 8.4 in² / 54.2 cm²
Direction of Flow: Bidirectional
Operating Temperature Range:-40 °F to 248 °F / -40 °C to 120°C
ZEOZORB® Desiccant Breather Model ZZ-225
Weight: 3.33 Ibs
Dimensions: 4 × 4 × 10.7 in
Amount of ZEOLITE (g): 1027 g
Amount of ZEOLITE (Ibs): 2.26 Ibs
Adsorption Capacity @ 20% (g): 205.4 g
Adsorption Capacity @ 20% (oz): 7.2oz
Net Weight of Unit (g): 1255 g
Net Weight of Unit (Ibs): 2.7 Ibs
Filtration area: 8.4 in² / 54.2 cm²
Direction of Flow: Bidirectional
Operating Temperature Range:-40 °F to 248 °F / -40 °C to 120 °C
ZEOZORB® Tank Vent Dryers
Information is provided on our resource page
ZEOZORB® Transformer Breather
Information is provided on our resource page
BREATHER ADAPTERS
NPW15-D08 Breather Adapter
6061-16 Aluminum Adapter
1.5" -16 UN(M) X 1" MNPT External Threads
2-126 Nitrile 70D O-Ring
1" Internal FNPT
Anodized Blue
NPW15-D08-AS Breather Adapter
6061-T6 Aluminum Adapter
ABS Anti-Splash Baffle Plate Insert
2-022 Nitrile 70D O-Ring (Insert Retainer)
1.5" -16 UN(M) X 1" MNPT External Threads
2-126 Nitrile 70D O-Ring
1" Internal FNPT
Anodized Blue
NPW15-D10 Breather Adapter
6061-T6 Aluminum Adapter
1.5" -16 UN(M) X 3/4" MNPT External Threads
2-126 Nitrile 70D O-Ring
1"Internal FNPT
Anodized Blue
Anti-Splash Available
TRANSMISSION & HYDRAULIC ADAPTERS
NPW15-D06-TRANSMISSION ADAPTER
Aluminum Cone Adapter W/1”FNPT
10-24 Socket Head Cap Screws-CS
Nitrile 70D-Ring
Anodized Blue
NPW15-SA03-HYDRAULIC TANK KIT
6061-T6 Aluminum Cone Adapter
Steel Tank Stiffener Ring
10-24 Socket Head Cap Screws
Nitrile 70D O-Ring
Anodized Blue
